Generalised logistic function

Calculate a 4- or 5-parameter logistic (sigmoidal) curve. The 4-parameter symmetric form is fit by analyse_kinetics() with method = "sigmoidal" and shape = "symmetric" (default), and by stats::nls() via the self-starting wrapper SSlogistic().

Usage

logistic(t, A, B, xmid, slope, asym = NULL)

Arguments

t: A numeric vector of the predictor variable (time).
A: A numeric parameter for the starting asymptote of the response variable.
B: A numeric parameter for the ending asymptote of the response variable.
xmid: A numeric parameter for the time at the inflection point (the steepest point) of the curve, in units of the predictor variable t.
slope: A numeric parameter for the response rate dx/dt at the inflection xmid.
asym: A numeric parameter for the asymmetry index of the curve; the fraction of the amplitude (y(xmid) - A) / (B - A) at which the inflection xmid occurs, in (0, 1). asym = 0.5 is symmetric and equivalent to the 4-parameter form. If NULL (default), a symmetric 4-parameter model is used.

Value

A numeric vector of predicted values the same length as the predictor variable t.

Details

The 5-parameter Richards form is exported for advanced use directly with stats::nls() but is not used by analyse_kinetics() due to convergence instability. For asymmetric responses, prefer gompertz() / gompertz_left(), which are more stable.

Model equations

Both forms are re-parameterised from the Richards generalised logistic model so xmid is the time at inflection and slope is the response rate dx/dt at the inflection.

4-parameter (symmetric): A + (B - A) / (1 + exp(-4 * slope * (t - xmid) / (B - A)))
5-parameter (asymmetric): A + (B - A) / (1 + exp(-k * (t - xmid)))^(1 / v) with v = -log(2) / log(asym) and k = 2 * slope * v / ((B - A) * asym).

The inflection is at t = xmid with dx/dt = slope and y(xmid) = A + (B - A) * asym for any asym in (0, 1):

asym = 0.5 (v = 1) collapses to the 4-parameter form.
asym -> 0 gives an early-acceleration curve (inflection near A).
asym -> 1 gives a late-acceleration curve (inflection near B).
asym = 0.368 (1/e) approximates a right-inflection gompertz() curve.
asym = 0.632 (1 - 1/e) approximates a left-inflection gompertz_left() curve.

Examples

## create an asymmetric logistic curve with random noise
set.seed(15)
t <- 1:60
x <- logistic(t, A = 10, B = 100, xmid = 30, slope = 4, asym = 0.3) +
    rnorm(length(t), 0, 2)
data <- data.frame(t, x)

## 5-parameter fit with the self-starting wrapper
model <- nls(x ~ SSlogistic(t, A, B, xmid, slope, asym), data = data)
summary(model)
#>
#> Formula: x ~ SSlogistic(t, A, B, xmid, slope, asym)
#>
#> Parameters:
#>       Estimate Std. Error t value Pr(>|t|)
#> A      10.2987     0.5316  19.372  < 2e-16 ***
#> B     100.9565     0.9135 110.519  < 2e-16 ***
#> xmid   29.3426     2.5692  11.421 3.87e-16 ***
#> slope   3.8707     0.6245   6.198 7.69e-08 ***
#> asym    0.2743     0.1115   2.460    0.017 *
#> ---
#> Signif. codes:  0 ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘ ’ 1
#>
#> Residual standard error: 1.827 on 55 degrees of freedom
#>
#> Number of iterations to convergence: 5
#> Achieved convergence tolerance: 1.54e-06
#>

y <- predict(model, data)

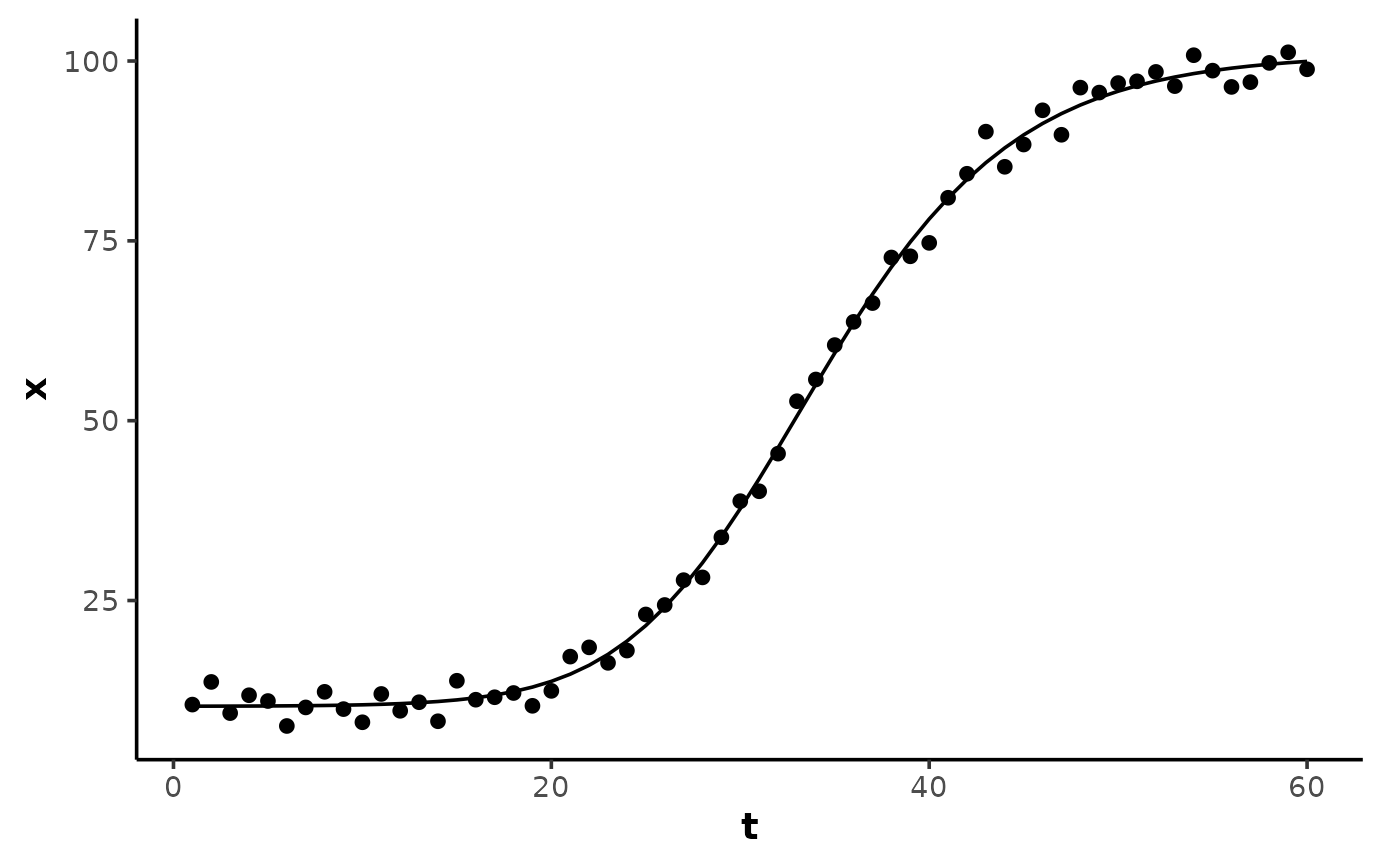

# \donttest{
    if (requireNamespace("ggplot2", quietly = TRUE)) {
        ggplot2::ggplot(data, ggplot2::aes(t, x)) +
            theme_mnirs() +
            ggplot2::geom_point() +
            ggplot2::geom_line(ggplot2::aes(y = y))
    }

# }
