Sigmoidal-drift function

Calculate a two-phase curve: a fast sigmoidal primary response of the given shape plus a slow linear secondary drift beginning near the ending asymptote. Model family fit by analyse_kinetics() with method = "sigmoidal_drift", and by stats::nls() via the self-starting wrapper SSsigmoidal_drift().

Usage

sigmoidal_drift(
  t,
  A,
  B,
  xmid,
  slope,
  slope_B,
  drift_fraction,
  shape = c("symmetric", "gompertz", "gompertz_left")
)

Arguments

t: A numeric vector of the predictor variable (time).
A: A numeric parameter for the starting asymptote of the response variable.
B: A numeric parameter for the ending asymptote of the response variable.
xmid: A numeric parameter for the time at the inflection point (the steepest point) of the curve, in units of the predictor variable t.
slope: A numeric parameter for the response rate dx/dt at the inflection xmid.
slope_B: A numeric parameter for the linear drift rate dx/dt of the secondary phase at the ending asymptote B, in response units per unit of the predictor variable t.
drift_fraction: A numeric fraction of the primary amplitude B - A in (0.5, 1) at which the linear drift begins, where the sigmoid reaches A + drift_fraction * (B - A).
shape: Character; the 4-parameter sigmoidal shape. One of "symmetric" (default; logistic()), "gompertz" (gompertz()), or "gompertz_left" (gompertz_left()).

Value

A numeric vector of predicted values the same length as the predictor variable t.

Details

Model equation

S(t) + slope_B * pmax(t - onset, 0)

S(t) is the 4-parameter sigmoid of the given shape with asymptotes A and B, inflection xmid, and inflection rate slope (see logistic() and gompertz()). The drift is a hinge line anchored at zero at the onset, so it is exactly zero up to the onset.

The drift onset is not a free estimate: it is the analytic inverse of each shape at the drift_fraction fraction f of its amplitude, onset = xmid + u / k:

shape = "symmetric": k = 4 * slope / (B - A); u = log(f / (1 - f)).
shape = "gompertz": k = slope * e / (B - A); u = -log(-log(f)).
shape = "gompertz_left": k = slope * e / (B - A); u = log(-log(1 - f)).

The "gompertz" form places its onset furthest past xmid (slow tail) and "gompertz_left" nearest (fast tail).

The excursion point texc is where the drift rate overtakes the decaying primary rate, |S'(t)| = |slope_B|, floored at the drift onset.

Examples

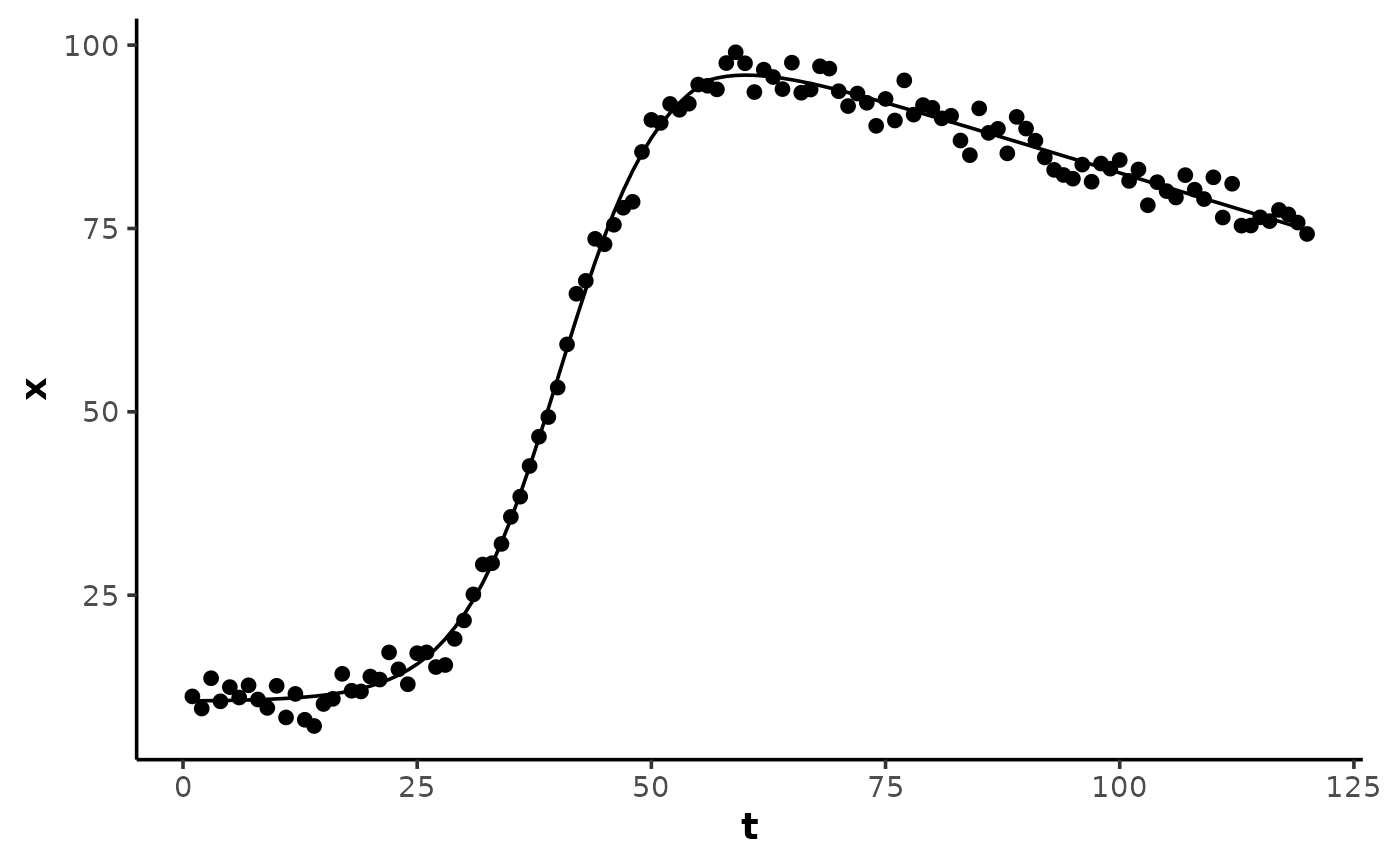

## create a sigmoidal curve with late linear drift and random noise
set.seed(13)
t <- 1:120
x <- sigmoidal_drift(
    t, A = 10, B = 100, xmid = 40, slope = 4,
    slope_B = -0.4, drift_fraction = 0.95
) + rnorm(length(t), 0, 2)
data <- data.frame(t, x)

## the drift onset fraction is held constant in the formula
model <- nls(
    x ~ SSsigmoidal_drift(
        t, A, B, xmid, slope, slope_B, drift_fraction = 0.95
    ),
    data = data,
    algorithm = "port",
    control = nls.control(warnOnly = TRUE)
)
summary(model)
#>
#> Formula: x ~ SSsigmoidal_drift(t, A, B, xmid, slope, slope_B, drift_fraction = 0.95)
#>
#> Parameters:
#>         Estimate Std. Error t value Pr(>|t|)
#> A       10.52640    0.42234   24.92   <2e-16 ***
#> B       99.63947    0.43413  229.52   <2e-16 ***
#> xmid    40.12853    0.15367  261.13   <2e-16 ***
#> slope    4.13185    0.08690   47.55   <2e-16 ***
#> slope_B -0.38786    0.01357  -28.59   <2e-16 ***
#> ---
#> Signif. codes:  0 ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘ ’ 1
#>
#> Residual standard error: 1.874 on 115 degrees of freedom
#>
#> Algorithm "port", convergence message: relative convergence (4)
#>

y <- predict(model, data)

# \donttest{
    if (requireNamespace("ggplot2", quietly = TRUE)) {
        ggplot2::ggplot(data, ggplot2::aes(t, x)) +
            theme_mnirs() +
            ggplot2::geom_point() +
            ggplot2::geom_line(ggplot2::aes(y = y))
    }

# }
